What ergonomics means on the assembly line
Ergonomics on the assembly line means fitting the workstation, tools and method to the person doing the job. The goal is less effort, fewer awkward postures and less repetitive strain, which cause pain, lost days and errors. In lean the gain is double: the motion that tires the operator is usually the one that eats cycle time.
Reaching for a far bin, twisting the trunk to grab a part or lifting a load from below the knee are motion waste. Fixing the station cuts effort and time together. This is a practical guide, not a substitute for an ergonomic assessment by a qualified professional.
Visual map of line ergonomics
The map shows the reach zones, the posture checklist and the numeric example with the NIOSH equation.
Reach zones and work height
Arm reach decides where each item belongs. As an order of magnitude, and varying with each person's size:
- Normal zone: the arc swept by the forearm with the elbow at the side, around 35 to 45 cm (14 to 18 in). Items used every cycle go here: main part, tool, controls.
- Maximum zone: reach with the arm extended, about 55 to 65 cm (22 to 26 in). For occasional items.
- Outside reach: requires leaning or stepping. It should be the exception.
Bench height matters as well: for light assembly the work surface usually sits near elbow height, for precision work slightly above and for heavy work slightly below. Height-adjustable stations serve different people without workarounds. Heavy loads should move between hip and chest height, never from the floor.
This lines up with motion waste and with 5S: a place for everything, close to where it is used.
Manual lifting: the NIOSH equation
For loads lifted by hand, the revised NIOSH equation gives a recommended weight limit (RWL) for a task. The load constant is 23 kg, reduced by multipliers that penalize poor conditions:
RWL = 23 × HM × VM × DM × AM × FM × CM LI = load ÷ RWL
- HM: horizontal distance from load to body (H, cm): HM = 25 ÷ H.
- VM: hand height (V, cm): VM = 1 − 0.003 × |V − 75|.
- DM: vertical travel distance (D, cm): DM = 0.82 + 4.5 ÷ D.
- AM: asymmetry (A, degrees of trunk twist): AM = 1 − 0.0032 × A.
- FM and CM: frequency and coupling, read from tables. In the example we assume FM = 1 and CM = 1 (rare lifting, good grip).
A lifting index (LI) above 1 means the task exceeds the recommended limit. Example with a 14 kg box:
| Factor | Before | After |
|---|---|---|
| H (horizontal distance) | 40 cm → HM 0.625 | 25 cm → HM 1.00 |
| V (hand height) | 50 cm → VM 0.925 | 75 cm → VM 1.00 |
| D (vertical travel) | 60 cm → DM 0.895 | 30 cm → DM 0.97 |
| A (trunk twist) | 30° → AM 0.904 | 0° → AM 1.00 |
| RWL | 23 × 0.625 × 0.925 × 0.895 × 0.904 = 10.76 kg | 23 × 1 × 1 × 0.97 × 1 = 22.31 kg |
| LI (14 kg load) | 1.30 | 0.63 |
Without changing the box, just bringing it closer to the body, raising the pick-up height and removing the twist, the index drops from 1.30 (above the limit) to 0.63. The equation has limits: it covers two-handed lifting under defined conditions and does not cover pushing, pulling or carrying.
Example: parts closer, shorter cycle
A fictional case to show the math. An assembly station needs 4 reaches per cycle to bins 55 cm from the operator. Each reach, with trunk lean, takes 1.8 s on average. With the bins moved to 30 cm, in the normal zone, a reach takes 1.1 s.
| Item | Calculation | Result |
|---|---|---|
| Gain per reach | 1.8 − 1.1 | 0.7 s |
| Gain per cycle | 0.7 × 4 | 2.8 s |
| Cycle | 48 − 2.8 | 45.2 s |
| Gain per shift (600 cycles) | 2.8 × 600 = 1,680 s | 28 min |
The 28 minutes per shift come from a change that costs nothing beyond moving bins, and the operator ends the shift with less trunk flexion. Before timing, fix the method: the time study should record the new method, and the standard time should include fatigue allowances. Capture the new cycle in standardized work so the gain does not fade by the next shift. If the cycle gets shorter, check the line balance: the gain becomes capacity only if the station does not just wait for the next one.
Posture checklist for the workstation
Watch a full cycle at the gemba, ideally with the operator, and tick each item:
- Shoulders relaxed, arms not held above chest height continuously.
- Elbows close to the body, wrists straight, no deviation in the grip.
- Trunk upright, with no repeated bending or twisting.
- Cycle items inside the normal reach zone.
- Frequent loads above 3 kg: mechanical aid or lower weight.
- Ability to alternate sitting and standing, or a foot rest for long standing work.
- Lighting suited to the task, without glare.
- Breaks and job rotation defined.

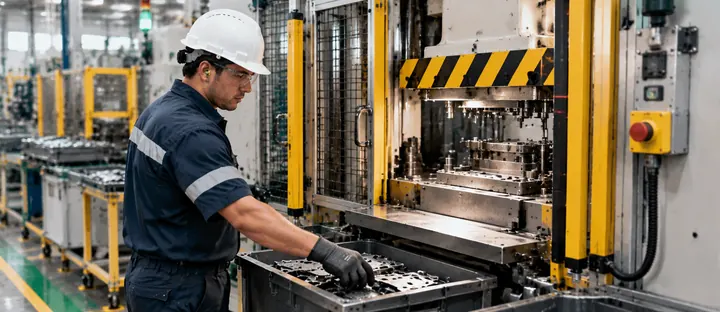

To score postures, observation methods such as RULA, REBA and OWAS assign points per body segment. For machine-related hazards at the station, see also machine safety and lean, since a badly placed guard also forces posture.
Common mistakes
- Blaming the operator: “not paying attention” or “wrong posture” often hide a badly designed station.
- Cutting effort by raising speed: cycle gain that comes from rushing is not improvement.
- Using average dimensions for everyone: fixed stations fit a narrow range of people.
- Ignoring repetition: a light load repeated thousands of times also injures.
- Measuring only load weight: distance, height and twist matter as much as the kilos.
- Not asking the people who do the work: the operator knows the exact point that hurts and delays.
Frequently asked questions
What is ergonomics on the assembly line?
Fitting the workstation, tools and method to the people, to cut effort, injury and lost time.
Do ergonomics and productivity go together?
Usually yes. Shorter reaches, less bending and less effort cut cycle time and fatigue. In the example, moving bins closer saved 28 minutes per shift.
What is the NIOSH lifting equation?
A method to calculate the recommended weight limit for manual lifting. A lifting index above 1 means the task exceeds the recommendation.
What is the ideal bench height?
It depends on the task and the person. Near elbow height for light assembly, slightly above for precision, slightly below for force. The safest answer is adjustable height.
Which standards cover manual handling?
Examples are ISO 11228-1 for lifting and carrying and, in Europe, EN 1005-2 for machinery-related manual handling.
Where should I start?
Watch the cycle at the gemba, apply the checklist, move items into the normal reach zone and measure again.
Sources
- WATERS, T. R.; PUTZ-ANDERSON, V.; GARG, A.; FINE, L. J. Revised NIOSH equation for the design and evaluation of manual lifting tasks. Ergonomics, v. 36, 1993.
- McATAMNEY, L.; CORLETT, E. N. RULA: a survey method for the investigation of work-related upper limb disorders. Applied Ergonomics, v. 24, 1993.
- HIGNETT, S.; McATAMNEY, L. Rapid Entire Body Assessment (REBA). Applied Ergonomics, v. 31, 2000.
- ISO 11228-1: Ergonomics — Manual handling — Lifting and carrying.
