System Reliability: Series and Parallel Formulas and Example

What is series and parallel system reliability

System reliability is the probability that a system performs its function for a defined time, calculated from each component's reliability and how the components are connected. In series every block must work, so reliability drops; in parallel one working block is enough, so reliability rises.

Each reliability R is a number between 0 and 1 for a mission time (for example, 100 hours). To see how failure rate changes over equipment life, read about the bathtub curve; this article is about combining components.

Visual map: block diagram and formulas

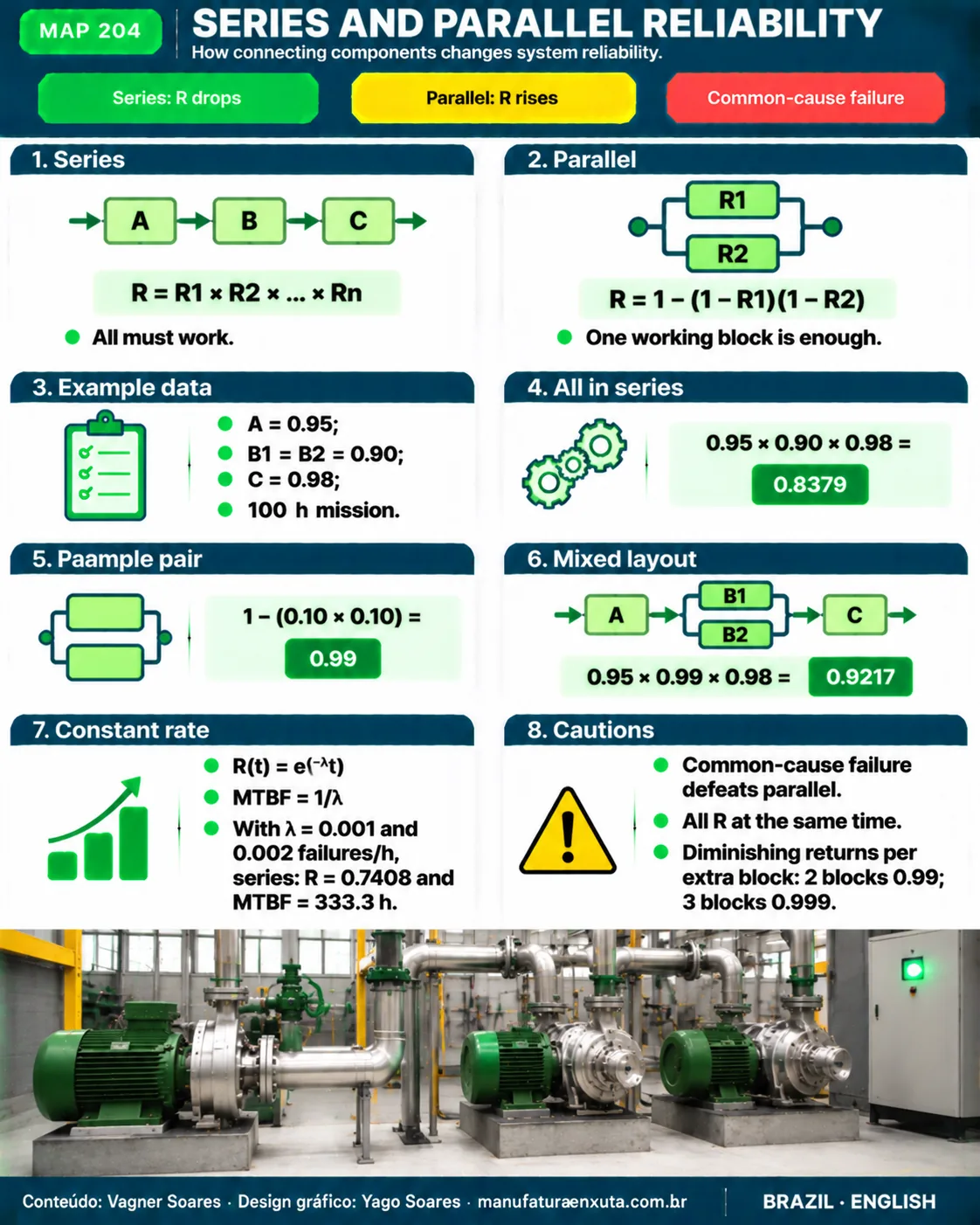

The map shows both arrangements as block diagrams, the formulas and the worked example with the same numbers used here.

Series system: the product of every link

In a series arrangement the failure of any block stops the system. Think of a filling line with a pump, a valve and a sensor: if one stops, the whole line stops.

R_series = R₁ × R₂ × … × R_n

Two practical consequences: system reliability is always lower than that of the weakest component, and the more blocks in series, the worse it gets. Ten components at R = 0.99 give 0.99¹⁰ = 0.9044; twenty give 0.8179.

Parallel system: redundancy

In a parallel arrangement (active redundancy) the system fails only if all blocks fail. So you calculate the probability that all fail and take the complement.

R_parallel = 1 − (1 − R₁) × (1 − R₂) × … × (1 − R_n)

Two pumps at R = 0.90 each: 1 − (0.10 × 0.10) = 0.99. With three pumps: 1 − 0.10³ = 0.999. Each added block gives a smaller gain than the previous one, yet costs the same.

When at least k of n blocks must work (k-out-of-n), use the binomial distribution. Example: 2-out-of-3 with R = 0.90 gives 3 × 0.90² × 0.10 + 0.90³ = 0.243 + 0.729 = 0.972.

Worked example: series, parallel and mixed layout

Fictional example: a pumping station has a feed pump A (R = 0.95), a redundant pair of pumps B1 and B2 (R = 0.90 each) and a control panel C (R = 0.98), all for a 100-hour mission.

Redundancy at the weak point (pump B) raised the system from 0.8379 to 0.9217. Reinforcing the weakest link pays more than improving a component that is already good. Note also that A and C, with no redundancy, now cap the result: 0.95 × 0.98 = 0.931 is the ceiling of this layout.

Constant failure rate: MTBF and mission time

When the failure rate λ is constant (the useful-life phase of the bathtub curve), each block's reliability is R(t) = e^−λt and MTBF is 1/λ. For the practical definition see the article on MTBF and MTTR.

R(t) = e^−λt    MTBF = 1 ÷ λ

Example: block 1 with λ = 0.001 failures/h and block 2 with λ = 0.002 failures/h, 100 h mission.

In series, failure rates add up, so MTBF falls from 1,000 h (block 1 alone) to 333.3 h. With two identical blocks in active parallel, system MTBF is 1.5 ÷ λ = 1,500 h, not double.

How to use it in maintenance and design

• Draw the reliability block diagram by function, not by physical layout: two sensors can sit side by side and still be in series for the function.
• Find the weak link with FMEA and fault tree analysis, whose AND/OR gates correspond to parallel and series.
• Decide where to add redundancy on critical items with long repair times; elsewhere, the RCM maintenance strategy is usually cheaper.
• Compare cost and gain: a second pump that lifts R from 0.90 to 0.99 may pay off; a fourth, from 0.9999 to 0.99999, rarely does.
• Feed the plan: mission reliability helps set intervals in the maintenance plan.

Common mistakes and limitations

• Assuming independence without checking. The formulas hold for independent failures; shared power, compressed air, software or operator error across two blocks cancels the parallel gain (common-cause failure).
• Mixing mission times. All R values must refer to the same time.
• Using catalog R as if it were your process. Duty, load and maintenance change the failure rate.
• Ignoring the switchover device. In standby redundancy, the switch can fail too.
• Applying constant λ to wearing parts, where the rate grows with time.
• Forgetting repair. These formulas cover non-repairable failure; for repairable systems, also assess availability.

Frequently asked questions

What is the series reliability formula?

The product of the reliabilities: R = R1 × R2 × … × Rn. With 0.95, 0.90 and 0.98 it gives 0.8379.

What is the parallel reliability formula?

R = 1 − (1 − R1) × (1 − R2) × … × (1 − Rn). Two parts at 0.90 give 0.99.

Why is series reliability lower than the weakest component?

Because all blocks must work at the same time; multiplying numbers below 1 always shrinks the result.

Is redundancy always worth it?

No. The gain shrinks with each extra block and vanishes with common-cause failures. Weigh it against cost and criticality.

How do I combine series and parallel in one system?

Solve each parallel group first, treat the result as a single block, then multiply it with the other series blocks.

How do I calculate MTBF of a series system?

Add the failure rates and invert: MTBF = 1 ÷ (λ1 + λ2 + …). With 0.001 and 0.002 failures/h, MTBF = 333.3 h.
